Halo™ R4000 Series

The world’s first Edge AI-capable Machine Health sensor. Our smallest industrial-grade sensor yet, the R4000-series sensors feature smart dynamic diagnostics, self-healing connectivity and wet environment protection – covering every asset that matters.

Elevate Your Machine Health with Augury’s Next-Gen Sensors

AI in Every Layer

AI In Every Layer – AI is infused throughout the IoT stack – to future-proof your Machine Health solution

Edge AI (Halo)

Edge AI Diagnostics – the first sensors to enable full-cycle diagnostics of even the most complex equipment

Smart sampling

Smart Sampling – dynamic and on-demand sampling that can automatically match your machine’s operating

Advanced Asset Coverage

Advanced Asset Coverage – Diagnostics of low RPM, intermittent, and changing speeds/load equipment

Sensor Fusion

Sensor Fusion – millisecond-level fusion of vibration, magnetic and temperature sample enables advanced capabilities like phase analysis

Halo Small and light

Small and Light Form Factor – Completely redesigned to be durable and easy to deploy on any machine

Dust and water protection

Dust and Water Protection – IP66/68/69 with specialized wet, caustic and wash-down protection

Industrial-grade Design

Industrial-grade Design – Improved materials and durability, tested and deployed at hundreds of factories

Self Healing

Self-healing Connectivity – AI-enabled auto-recovering IoT automatically mitigates connectivity loss

Battery

5-year Battery – fully replaceable batteries proven to last up to 5 years

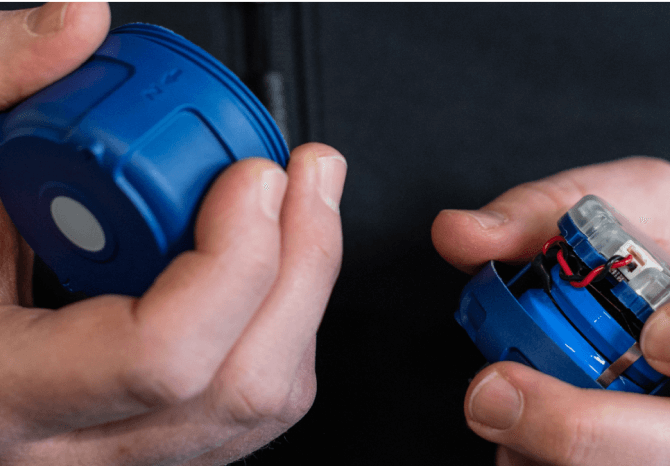

A person holds and opens a small blue cylindrical device from the Halo R4000 Series, revealing its internal electronic components for sensors and machine health monitoring.

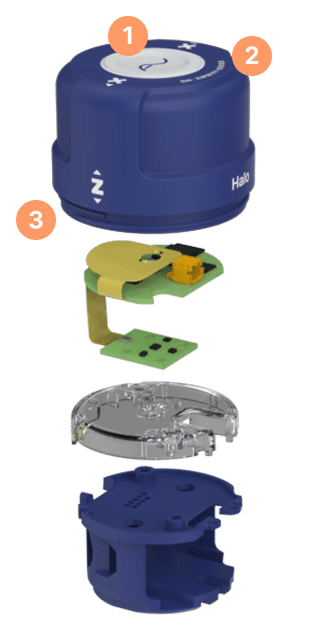

1.
Tri-axial vibration, temperature and magnetic flux sensor array
2.

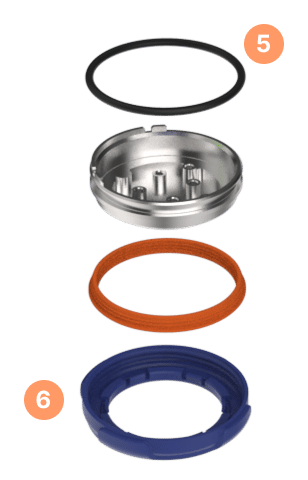

O-ring seal for moisture protection
3.
Locking ring and screw
4.
Field-replaceable battery
(up to 5 year lifetime)
5.
Multi-function button with LEDs
6.
NFC tag
7.
External installation orientation markings (XYZ)

Technical Specifications

The new Halo™ R4000 family of sensors deliver the same full spectrum triaxial vibration, temperature, and magnetic data which currently drive our AI and machine learning algorithms. With our new sensor, we continue to deliver Machine Health as a service via an end-to-end solution with no changes in customer actions or outcomes.

Accelerometer

Sensor Type: Digital Triaxial
Dynamic Range: +/- 16g
Bandwidth: +/- 3dB @ 6.3kHz (0 – 13 kHz)
Temperature Dependence: 1%/C
Noise Floor: 75 μg/√Hz

Temperature Sensor (Environment)

Sensor Type: Digital (Top Location)
Temperature Range: -40°C to 85°C (-40°F to 185°F)
Temperature Accuracy: ±0.25°C
Temperature Sensitivity: ±5°C (±9°F)

Temperature Sensor (Surface)

Sensor Type: Digital (Base Location)
Temperature Range: -40°C to 105°C (-40°F to 221°F)
Temperature Accuracy: 256 LSB/°C (Digital)
Temperature Sensitivity: 16 bit

Magnetic Sensor

Sensor Type: Digital Tri-Axial
Sensitivity: 6842 LSB/ Gauss @ FS=±4 Gauss (Digital)
Measurement Range: 16 Gauss Full Scale
Bandwidth: 1000 Hz (ODR)
Noise Floor: 3.2 mGauss @ FS=±12 Gauss

Radio Specifications

EP Tx Power (BLE highest rated output power): 8 dBm
BLE Frequency band: 2400 MHz – 2480 MHz
NFC Frequency: 13.56 MHz

Environmental Specifications

Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)
Sealing: IP66/68/69

Electrical Specifications

Battery Types: Multiple manufacturers supported
2 Coin Manganese Dioxide Lithium Battery Pack (LiMNO2)
2/3 A Manganese Dioxide Lithium Battery 2-Pack (LiMNO2)

Mechanical Specifications

Dimensions: 56 mm x 52 mm
Weight: 150 grams

Wireless Specifications

FCC ID: 2A3XG-R4000
IC Number: 28013-R4000
NFC: 13.56 MHz

Work Better With Augury

Augury provides manufacturers and other industrial sectors with insights into the health of machines, processes, and operations to transform how people work and what they can create. Together with our customers, we are building a world where the combined work of people and machines makes life better in every way.

Close-up of an industrial machine from the Halo R4000 Series with a cylindrical metal surface, featuring a white and a blue knob. The machine health sensors show the surface appears dirty and corroded.

Frequently Asked Questions

Can’t find the answer to your question?

  • Is there a significant difference between the Halo R4000 sensors and older generation sensors?

    The new Halo™ R4000 sensor series is designed for non-hazardous, and wet environment support. It has also been redesigned with a smaller and lighter form factor, for easier installation and maintenance. It has the same robust water and dust protection as previous sensors (IP 66/68/69), along with enhanced water ingress protection for wet and extremely wet environments. The Halo™ R4000 series comes with more battery options, making it easier than ever to order battery replacements. Otherwise, you will get an identical Machine Health experience as the sensors will deliver the same full spectrum triaxial vibration, temperature, and magnetic flux data as our older sensors.

  • When can I expect the new Halo R4000 to be installed in my plant or site?

    The following sensors will be used in new installations and to replace non-functional older sensors (non-functional due to reasons other than a depleted battery) starting H2 2024:

    • R4000 NHZ – for non-hazardous environments and non-High G operating conditions

  • Will my existing installed sensors be supported?

    Absolutely – all existing sensors will continue to be supported until they reach their end of life (when battery or replacement kits are no longer available); at which point they will be replaced with Halo™ R4000 sensors.

  • Could you tell me more about wet environment protection?

    The Halo™ R4000 NHZ is rated up to IP66, IP68 & IP69 – which means it has been tested for protection against strong water jets as well as water ingress, up to and including complete submersion below one meter and for more than 30 minutes.
    There are not many products out there that can score higher. However, the Augury team went a step further to enhance water protection even more by sealing the Halo™ R4000 NHZ with an O-Ring which significantly improves protection against water ingress in dynamic wet environments (typically areas with 100% humidity or heavy wash down areas).

  • Will there be options for even higher water resistance sealing for extreme wet environments?

    Yes – we are working on additional sensor variants that have very high water resistance protection for areas that experience constant high humidity or constant wash downs ; more details will be provided when these sensors are available.

  • Why does R4000 NHZ have 3 IP ratings?

    IP ratings are not a scale – higher does not mean better. Each IP rating is unique.:

    • IP 66 – Protection against strong water jets (in heavy washdown areas)
    • IP 68 – Protection against extended submersion (30 minutes in water at least 1 meter deep)
    • IP 69 – Protection against very high pressure water and hot steam pressure cleaning.

    Based on what customers have required – we have chosen to get IP66, IP68 and IP69 ratings – but most importantly – decided to go a step further and add an O-Ring seal for enhanced protection in extremely wet environments based on customer feedback and site-testing.

  • What about battery replacement?

    The R4000 NHZ uses batteries supplied by multiple battery manufacturers. This means that there are more options for ordering battery replacements (i.e. you are not restricted to a single manufacturer). This expansion in supply means that we can order replacements more easily, with shorter lead times. Batteries are interchangeable.

  • Can I install Halo R4000 alongside older sensors like Halo EP 1 or EP 2?

    The Halo™ R4000 sensor is designed to be backwards compatible with all other Halo™ sensors – and hence can be easily integrated with existing Halo installations in a site (for e.g. when replacing sensors).

  • Can I request to have all of my existing sensors replaced with Halo™ R4000?

    Augury’s Machine Health as a Service is designed to deliver the same quality of diagnostics regardless of the type of sensor used. As part of this end to end service, we will continue to partner with your site team to service and maintain all sensor and IoT infrastructure. In the event that your sensors are non-functional we will work with your team to determine the cause and perform one or more of the following remediations:

    1. Ship replacement battery packs in the event of battery depletion
    2. Ship replacement sensors identical to the ones installed (subject to stock availability)
    3. Ship next-gen sensor replacements (Halo™ R4000)

  • I have more questions

    In case you need more information, please do not hesitate to contact Augury support through the platform.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in an installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  1. Reorient or relocate the receiving antenna
  2. Increase the separation between the equipment and receiver.
  3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Augury Systems Ltd.) could void the user’s authority to operate the equipment. To comply with FCC and IC RF exposure compliance requirements, the device should be located at a distance of at least 20 cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with FCC Rules Part 15 and with Industry Canada license-exempt RSS standard(s). Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause undesired operation
